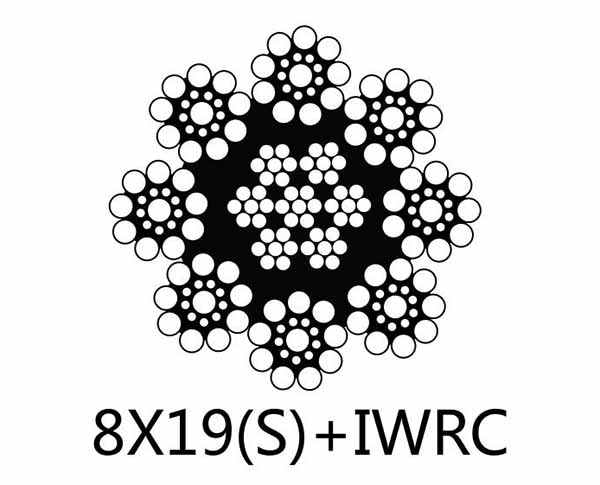

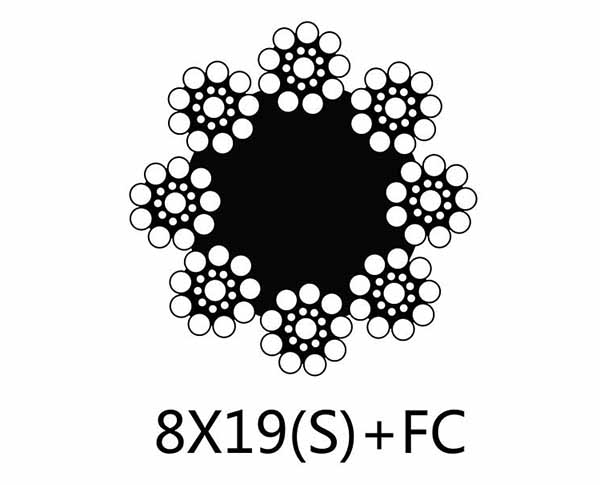

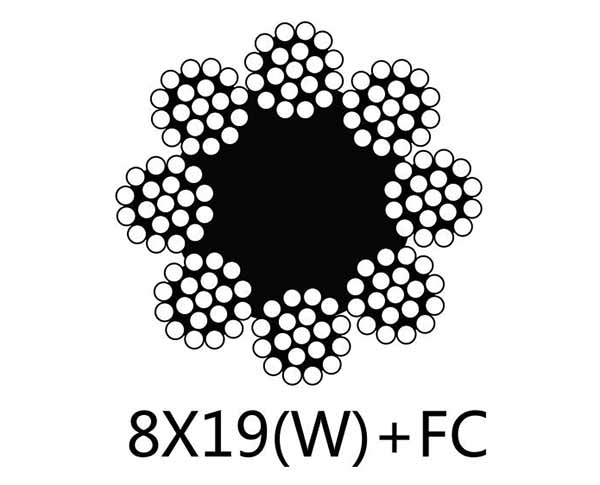

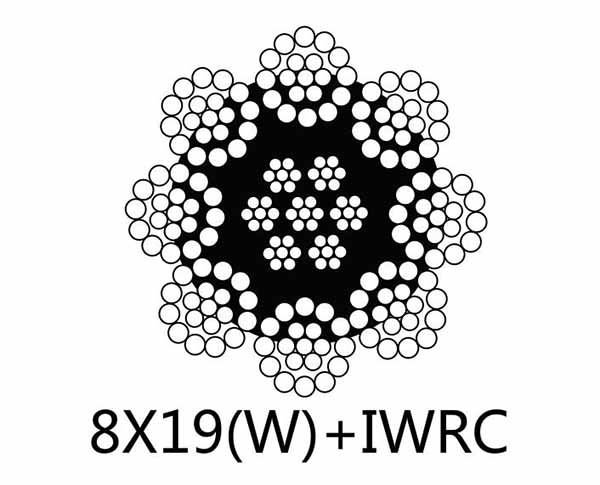

DIN3062，8×19（S）+FC，8×19(S)+ IWRC,8×19（W）+FC，8×19(W)+ IWRC
| Specification：DIN3062， 8×19（S）+FC， 8×19(S)+ IWRC,8×19（W）+FC， 8×19(W)+ IWRC | ||||||
| Usage：Hoist，General Industry，Sink Boat Dragging | ||||||
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | ||||
| Minimum Breaking strength(KN) | ||||||
| kg/100m | 1570N/mm2 | 1770N/mm2 | ||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 10 | 34.6 | 42.5 | 45.1 | 53.2 | 50.8 | 59.9 |
| 11 | 42.2 | 51.4 | 54.5 | 64.3 | 61.5 | 72.5 |
| 12 | 50.2 | 61.2 | 64.9 | 76.6 | 73.2 | 86.3 |
| 13 | 58.9 | 71.9 | 76.1 | 89.8 | 85.9 | 101 |
| 14 | 68.3 | 83.3 | 88.3 | 104 | 99.6 | 117 |
| 15 | 78.4 | 95.7 | 101 | 120 | 114 | 135 |
| 16 | 89.2 | 109 | 115 | 136 | 130 | 153 |
| 17 | 101 | 123 | 130 | 154 | 147 | 173 |
| 18 | 113 | 138 | 146 | 172 | 165 | 194 |
| 19 | 126 | 153 | 163 | 192 | 183 | 216 |
| 20 | 139 | 170 | 180 | 231 | 203 | 240 |
| 22 | 169 | 206 | 218 | 257 | 246 | 290 |
| 24 | 201 | 245 | 260 | 306 | 293 | 345 |
